Water Purificarion Equipment for Sea Water
AQUATTY ryo [涼]


This specific seawater purification system is able to produce drinking water up to 1,000 liter(270 gallon)/day using only solar panel. It can tronsform seawater to drinking water anywherein the world.

As a matter of course, this system is able to purify various water from pond, river,water storage, and produce drinking water up to 1,000liter(270 gallon)/day using only solar panel.
Drinking water can be produced anywhere, for example, on outdoor activities or on shipboard life, and even in case of disaster emergency.
Batteries and commercial electricity supplies can also be used during night-time without sunlight.

Operate with solar panels

With the sun, you can turn salt water into drinking water anywhere in the world.

Generate 1,200 liters per day at maximum

It can produce 1,200 liters (317 gallons) of drinking water in a day.

Compact and lightweight

It can use everywhere places such as outdoor leisure boats and living in a ship.

Simple and sturdy design

It is not emphasis on appearance, it is low cost in terms of actual merit priority.

Fresh water can also be used

It can also be used for dirty fresh water such as ponds, rivers, water storage facilities on land.

Made in Japan safe

All the basic parts including the filter are made in Japan and assembled in Japan.

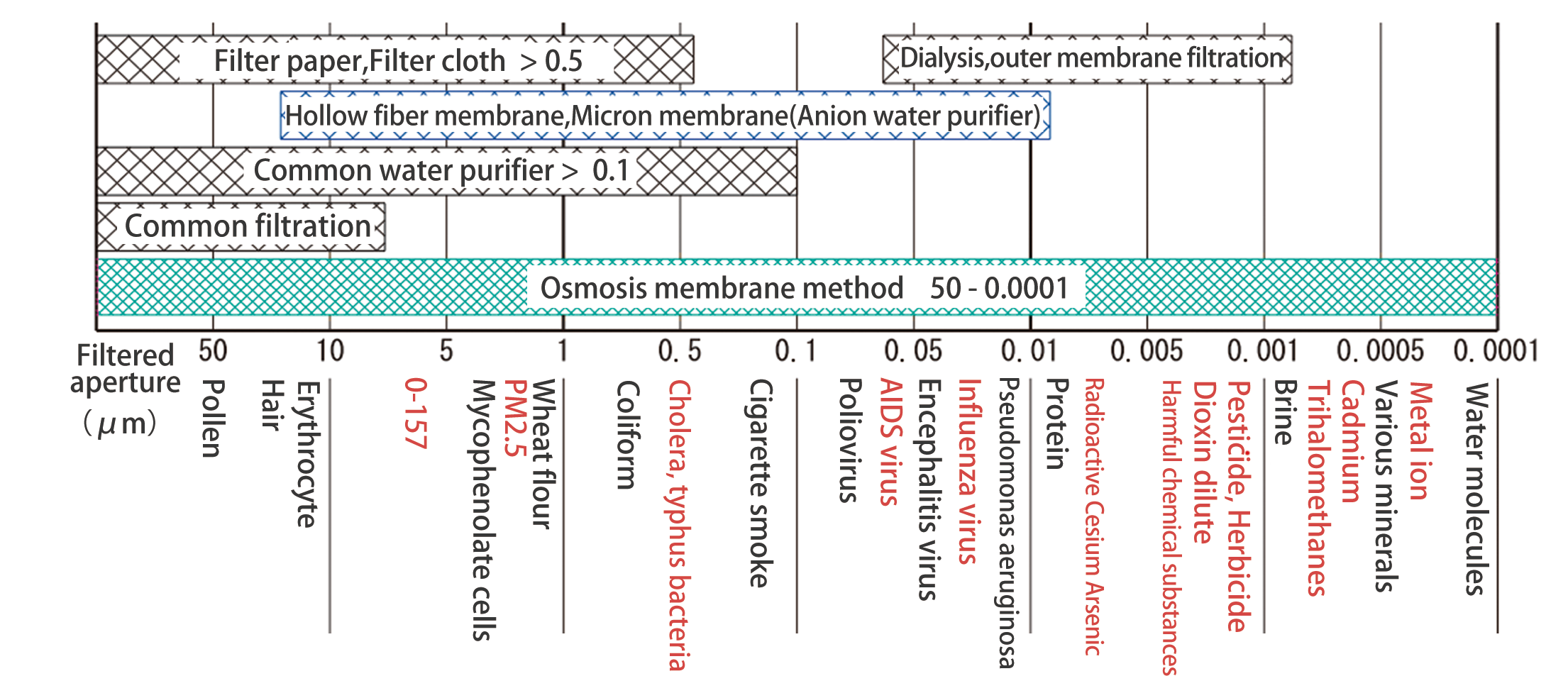

Filter Range Chart



逆浸透膜方式は、ほとんどの有害物質を取り除きます。

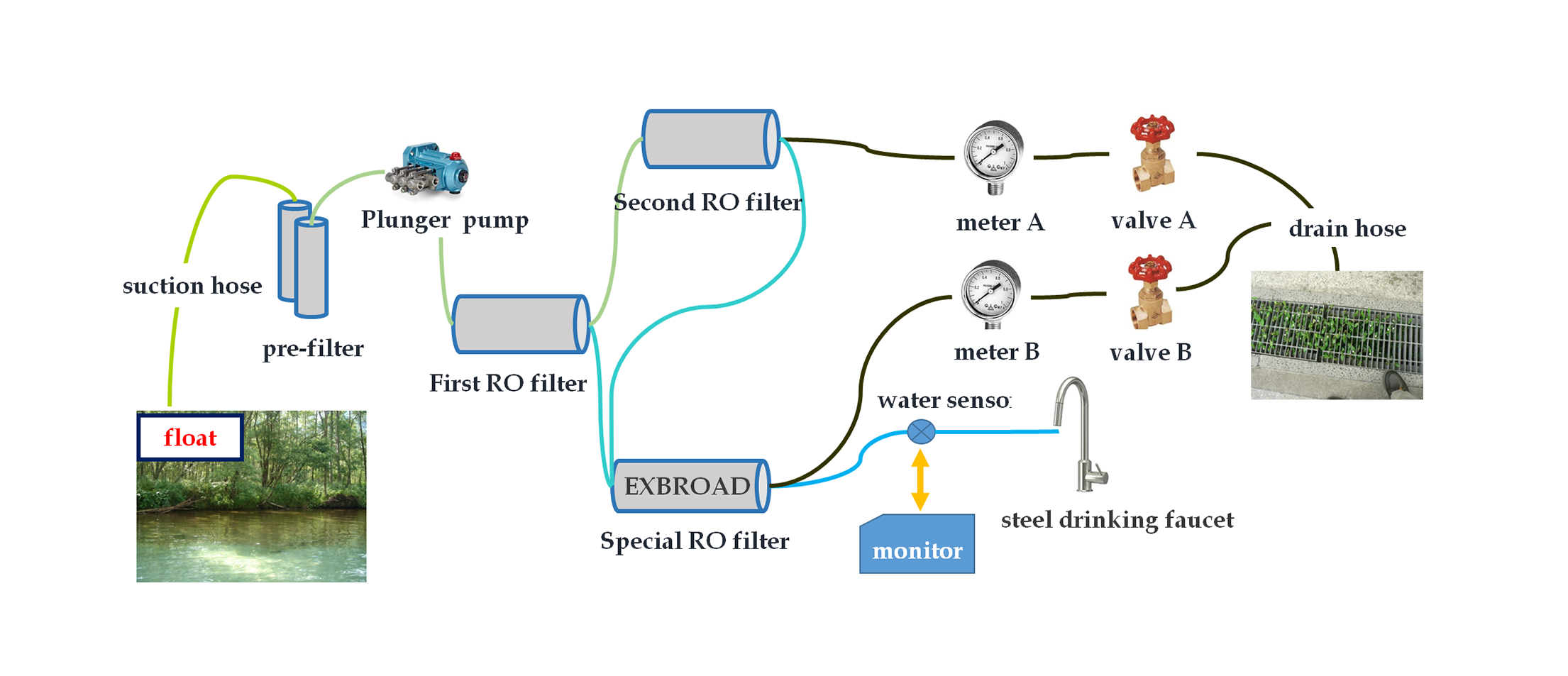

System Flow Chart



汚れた水が綺麗になる仕組みです。

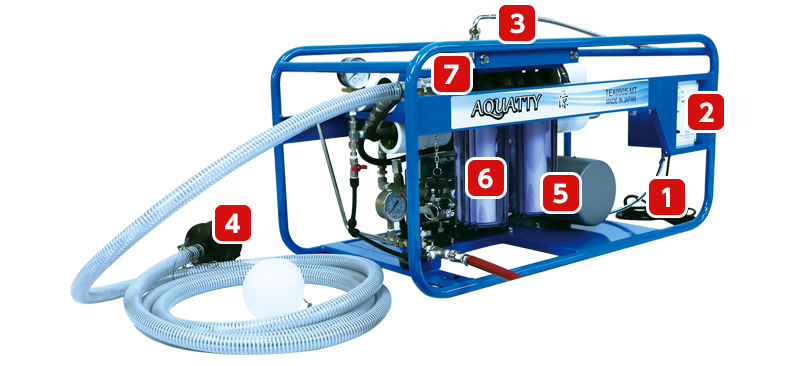

Each Function



Power supply code

AC200-220V single phase / AC 100-110V single phase

Intelligible Operation Panel

Sensor installed pipe inside linked to electric switch notifies water purity by LED color.

Purified Water Faucet

Need to be maintained clean.
Faucet can be dispatched as necessary

Suction Hos

Sourse water, within height-difference of 1 meter to be drawn by built-in pump.

Motor

HITACHI made with hi-power motor

Pre filter

Large garbage is removed here.

Easy Replacement

Filter replacement kit is available(optional).

SPECIFICATIONS


Source water(※1)
Sea water,river water,lake water,pool,water tank,rain
water processing(※2)|sea|
40L/h(960L/day)
water processing(※2)|fresh|
100L/h(2400L/day)
Clean water function
strainer(5mm)
pre-filter(10µm)
Reverse osmotic membrane filters(0.0001µm)
Standard installation
sonsor of water quality
water quality shown by LED lamp color
pump
Horizintally 3 unit combination Super flow pump
(seawater correspondence)
motor
Motor 1000VA input AC100 - 200V single phase
size
width 995mm × depth 480mm × height 480mm
Dry weight|The main body
70kg
Accessories
Water supply hose(5m) with strainer
Drainage hose(3m)
Faucet(0.8m)
float
Two pre-filters(preliminarily)
Wrencd(for pre-filter replase)
  • ※1:Please do not use the water including the filthy or oil.
  • ※2:It changes along water temperature, operation pressure and the state of source water.
    The specifications mentioned above are exanimated in water temperature 25 degress and pressure 5.5MPa.
  • ※3:The specifications of the productmay be changed for improvement without notice.

Product Series of Water Purification Devices



Water Purifier For Fresh Water
model TEX100F-MT/HB

TEX-100F-MT/HB, cost reduced version by installing only oneRO filter, designated for freshwater purification is alsoavailable. This specific system can also be operated on DC24V.

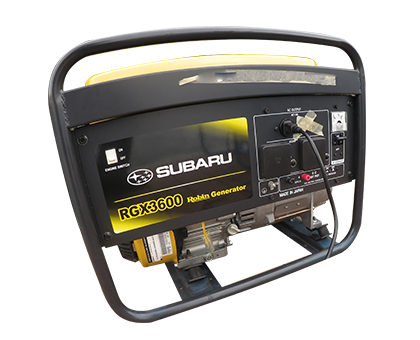

SUBARU RGX3600 Generator

In case of lack of electricity supply (either solar panel or commercial power supply), engine - generator may be provide (optional). Single-phase power generation of 100V or 200V is available. Both gasoline type & diesel type are available. Please contact for further details.
